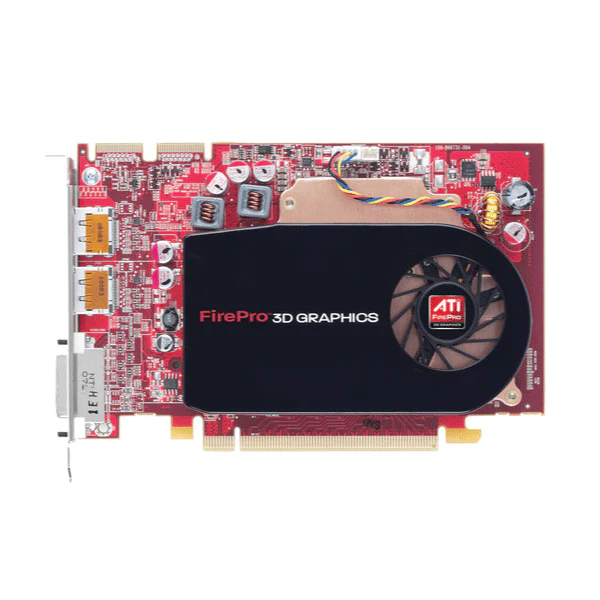

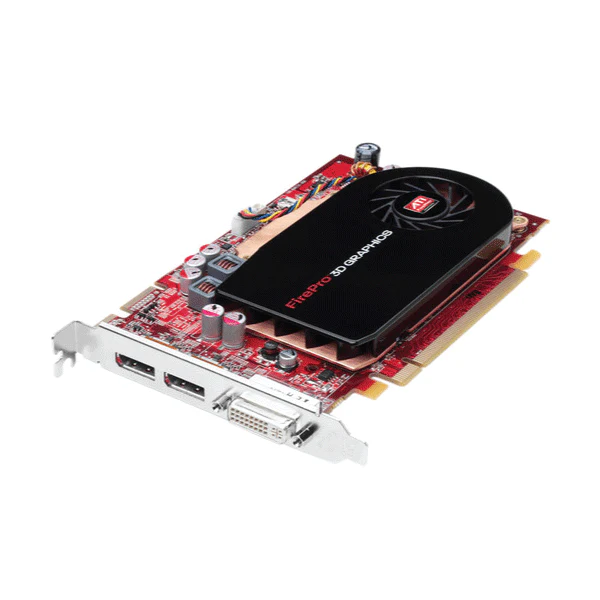

ATI FirePro V3750 256MB DDR3 128-bit DVI DisplayPort Graphics Card | 3mth Wty

The FirePro V3750 was a performance-segment professional graphics card by ATI, launched in September 2008. Built on the 55 nm process, and based on the RV730 graphics processor, in its RV730 PRO variant, the card supports DirectX 10.1. Since FirePro V3750 does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games.

The RV730 graphics processor is an average sized chip with a die area of 146 mm² and 514 million transistors. It features 320 shading units, 32 texture mapping units, and 8 ROPs. ATI has paired 256 MB GDDR3 memory with the FirePro V3750, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 550 MHz, memory is running at 700 MHz. Being a single-slot card, the ATI FirePro V3750 does not require any additional power connector, its power draw is rated at 48 W maximum. Display outputs include: 1x DVI, 2x DisplayPort. FirePro V3750 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 168 mm in length, and features a single-slot cooling solution.
