HP ProLiant DL360 GEN9 Server XEON E5-2620 V4 32GB 2x480GB SSD 1TB 10K SAS Wty

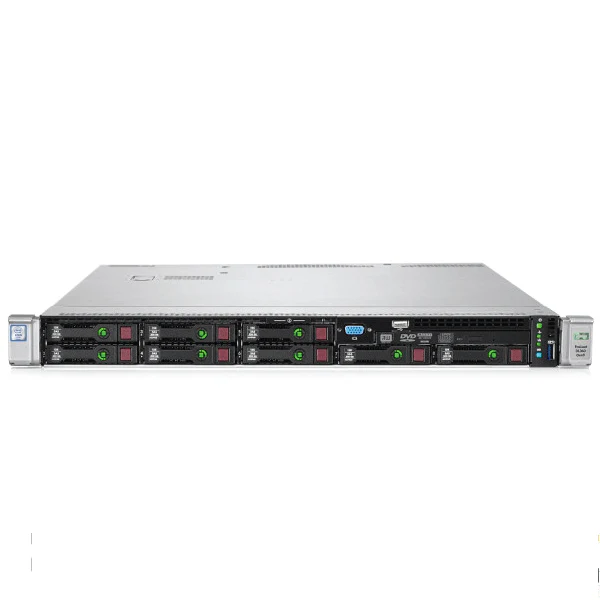

HP ProLiant DL360 Gen9 1U Server — Xeon E5-2620 V4, 32GB DDR4, 2×480GB SSD + 1TB SAS
The HP ProLiant DL360 Gen9 is a compact 1U rack server built around the Intel Xeon E5-2620 V4 8-core processor at 2.1 GHz (3.0 GHz Turbo), 32GB DDR4 ECC RAM, and a dual SSD array (2×480GB SSD) supplemented by a 1TB 10K SAS HDD. Designed for virtualisation hosts, enterprise database workloads, and dense data centre environments. Note: rack rails are not included. Backed by a 12-month Reboot IT warranty.
Key Benefits
- Xeon E5-2620 V4 8-core processor — 14nm Broadwell-EP with 8 cores / 16 threads at 2.1 GHz base / 3.0 GHz Turbo, well-suited to virtualisation and multi-threaded workloads
- 32GB DDR4 ECC RAM — error-correcting memory protects data integrity for database, VM, and critical application workloads; expandable with additional DIMMs
- Dual 480GB SSD primary storage — fast solid-state drives for OS, databases, and active virtual machine images with enterprise SSD reliability
- 1TB 10K SAS secondary storage — high-speed SAS HDD for data storage, backups, or less performance-critical VM images
- 1U compact form factor — maximises rack density; fits any standard 19-inch rack (HP Gen9 compatible rail kits sold separately)
- 12-month warranty from Reboot IT — tested including POST, memory verification, disk health check, and iLO4 remote management verification
Performance in Use
The DL360 Gen9 is a proven enterprise workhorse — its Xeon E5 V4 platform underpins a large share of VMware ESXi, Hyper-V, and KVM virtualisation deployments in Australian data centres. With 32GB ECC RAM and fast SSD primary storage, this unit comfortably hosts 4–8 light virtual machines or 2–4 resource-intensive ones, making it an economical on-premises virtualisation platform for SMBs or a development/test environment for larger enterprises.
The 1TB 10K SAS drive provides a secondary storage tier for VM snapshots, log archives, or shared folder use within the server. The iLO4 remote management interface allows full out-of-band server management — remote console, power control, and hardware health monitoring — without requiring physical rack access.
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon E5-2620 V4 (8-core/16-thread, 2.1 GHz / 3.0 GHz Turbo) |
| RAM | 32GB DDR4 ECC Registered |
| Primary Storage | 2× 480GB SSD |
| Secondary Storage | 1× 1TB 10K SAS HDD |
| Form Factor | 1U rack-mount (19-inch) |
| Remote Management | HP iLO4 |
| Network | Embedded 4× 1GbE (HP FlexFabric 331i) |
| Expansion | PCIe 3.0 slots, FlexibleLOM slot |
| Note | Rack rails not included — sold separately |
| Warranty | 12-month Reboot IT warranty |
Is It Right for You?
|
✓ Best For: • VMware ESXi / Hyper-V / KVM virtualisation hosts • SMB database and application servers • Dev/test server environments • Dense 1U rack deployments |
✗ Not For: • Users requiring rack rails (sold separately) • High-memory workloads without RAM upgrades • Edge deployments requiring silent operation • Non-rack desktop server environments |
Condition Grades
| Grade | Cosmetic Condition | Testing |
|---|---|---|
| A — Excellent | Minimal marks, near-new appearance | POST, CPU/RAM, all drives, iLO4, and network ports verified |
| B — Good | Light scuffs or scratches, fully functional | POST, CPU/RAM, all drives, iLO4, and network ports verified |
Frequently Asked Questions
Are rack rails included?
No — rack rails are not included. HP ProLiant Gen9 compatible rail kits are available separately from HP and third-party suppliers.
Can RAM be expanded?
Yes — the DL360 Gen9 supports DDR4 RDIMM/LRDIMM and can be expanded beyond 32GB using additional DIMM slots, up to the platform maximum.
What RAID configuration is it shipped in?
The server ships with drives as configured. Check the HP Smart Array controller configuration via BIOS or iLO before deploying in production.
Does it include an operating system?
No OS is pre-installed. The DL360 Gen9 supports Windows Server, VMware ESXi, and major Linux distributions.
What are the shipping costs?
Shipping costs apply based on size and destination — rates are calculated at checkout.
Is the iLO4 port functional?
Yes — iLO4 is tested as part of our pre-sale verification. A valid iLO licence may be required for advanced features.
Warranty & After-Sales Support
This HP ProLiant DL360 Gen9 Server includes a 12-month warranty from Reboot IT, covering all hardware defects from the date of purchase.
Reboot IT has been Australia's trusted refurbished IT specialist since 2001. Every unit is professionally tested before dispatch. Melbourne-based support at reboot-it.com.au.
